Light box plane backlight curtain solution

The signage industrial is one of the pioneer of LEDs use. as the huge advantage of LED lighting: 1.energy saving. 2.stable. 3. Solid light source, small and non fragile. 4. low voltage, easy install.

Most of normal backlight LEDs are point light source string, for example the LED module light, flexible combination for channel letter, and some irregular shape.

For square or rectangle light box, the plane light source can be excellent choice. here we take the IlluTank Opto IlluBarC300 series as example:

Plane backlight LED for lightbox

The curtain are LED light bar series connecting together. normal DC12V input, and current constant drive design for each LEDs. the bar can be custom length. here we made the data of 0.5M bar for your info:

• LED quantity: 12/Bar
• LED chip: San'an
• PCB: RF4
• Power: 2.8W/Bar
• Lumens: 220lm/Bar @ 12000K
• Standard curtain: 30 bars
• Protection: IP60
• Dimension: 500*10*5mm(Bar) 500*2000*5mm(curtain)
• Warranty: 2 years

The bar connect with each other with a specific holder, with screw hole for install. and each bar connect with 5cm cable, it's also a hang rope for the curtain.

The light source SMD5050 LEDs, tri-chip inside, single LED with more than 20lm output. and transistor CCT design, make sure the circuit in constant amber. the design for long-term working lightbox.

The curtain itself have consider of the light box usage, for 10cm thickness or deeper light box. hang the curtain inside, the average lux upon 1020lux, you can narrow the bar to make brighter light.

The whole system for a normal light box, will need just one more power supply, or a timer switch if you need. super easy for install.

There also slim type of light box, side emitting to a optical sheet. that's a little different, and will be different LEDs solution.

ABS injection LED module light

As material for LED module lights, ABS can be better heat radiation than PVC, also ABS shell in injection process can be better looking. it's used to be symbol of high rank(high price) module sign. now, made in China make it in low cost!

IlluTank ABS LED module light

Módulos LED para letreros luminosos

We support ABS injection process now, it's can based on the normal module PCB. also aluminum PCB, CCT design, and also with lens design. Check the IlluModule I400CW3.

Now available in IlluTank module series quotation.

It's can be great promote solution for your market, it's can be ideal light source for high rank channel letter sign project.

Contact IlluTank team if you may interested.

SMT of LEDs for back light and decoration

IlluTank Opto dedicated in SMD series LEDs solution. The team gets together for a stable and reliable LED light source brand in 2007, in the the Chinese electronic center, Shenzhen City. We located in middle market, Epistar chip, packing in Shenzhen, and SMT welding and QC in house.

We domain at SMD serial LED light source for illuminated signs and LED lighting, Linear / Spot light source:
LED module lights for illuminated channel letter; light bar for light box, LED strip, LED neon lights for signs; LED pixel light with controller, RGB + DMX for outdoor lighting decoration.

Módulos LED para letreros luminosos, cinta LED

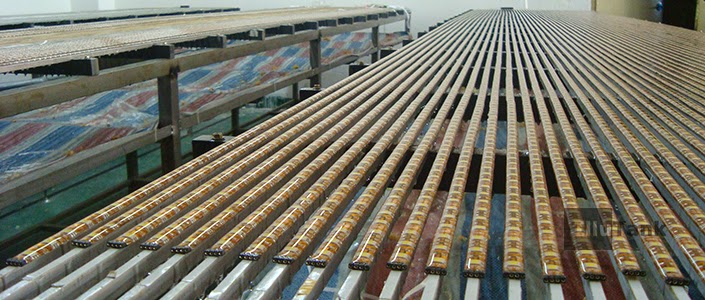

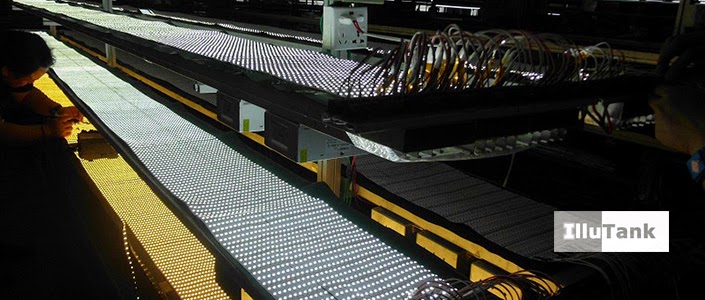

IlluTank are SMT process, welding, assembly, QC in house. the high speed SMD machine is well roll in our experience worker. the inspector here are dedicated in more than 3years, familiar with the supply chain here and do well at quality control. It's help better support for unique require. We inspect strict at the materials, the accessories, output from us. And warranty 2~4 years to our products.

We may help:
illuminated sign maker,
LED lighting wholesalers,
Electrical project contractor,
Trader in signage material,
Also DIY lighting house owner.

We support you with mature and competitive solution in LEDs.

Check our official site www.illutank.com or contact info@illutank.com if we can help you.
